In lugnet.cad.dat.parts, Benjamin Lyttle wrote:
| |
So I’m sitting here staring at my part and all of the quads I’ve used to make
it • up wondering, how do I minimize T-junctions? Are there primatives that
can • replace the quads/ triangles? I have a LOT of T-junctions in what I’ve
made up
|
so far. I’m still getting my head around Quad2dat. Suggestions?!?
First of all, as far as I know, a T-junction in a triangle or quad can always be
removed by the addition of one triangle. This can be tedious, but I don’t know
of any automated solution. Also, there are often better ways to get rid of

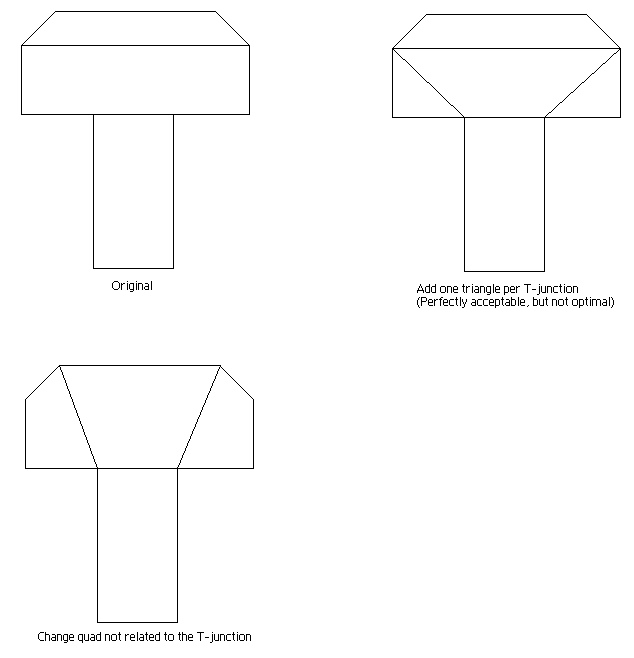

T-junctions than adding a triangle. For example:
Notice that the bottom version is made up of 3 quads, while the right version
has 3 quads and 2 triangles. That makes the bottom version better, sort of.
Most renderers will at some point divide all the quads into triangles, and both
versions result in the same number of final triangles, so it’s not necessarily
as much better as it might look. (I mention this, because things get a whole
lot more complicated as the shapes become more complex, and it’s really not
worth trying to figure out the configuration with the fewest number of lines in
the LDraw file. The differences are just too minor for that to be worth it.)
So the most basic answer to your question is that to get rid of a T-junction,
you add a new triangle inside the existing quad or triangle. One thing that you
DON’T want to do is convert a triangle into a quad in order to avoid a
T-junction. This won’t actually work right.

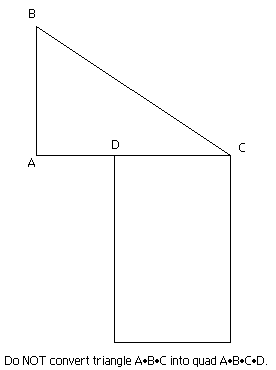

In the above example, the correct thing to do is split the triangle into two
separate triangles: A•B•D and B•C•D. If you create a quad A•B•C•D, the tracker
might reject the part (degenerate quad), but even if it doesn’t, it’s bad. As I
said above, the renderer will likely split the quad into two triangles. The
thing is, there’s no way to know how that split will go. So it could choose
A•B•D and B•C•D, or it could choose A•B•C and A•C•D, which ends up being a
triangle with a T-junction and a degenerate triangle (line). LDView will
actually pull the D point out of the quad at load time and treat it as a
triangle (and spit out a warning).
This all gets much more complicated when the T-junctions happen along the edges
of primitives like disks. Sometimes it’s not even possible to get rid of the
T-junctions when using primitives, and at least with circular primitives, I
think that it’s better to use a circular primitive with a T-junction that can’t
be removed than it is to avoid the circular primitive in order to avoid the
T-junction.
--Travis
|
|
