In lugnet.trains, Ben Fleskes wrote:
> In lugnet.trains, Sebastian Dyson wrote:
> > I'm trying to design an 8-wide 4-8-4 using Big Ben's wheels (CAD only, I'm but a
> > poor student), and want the loco to be able to negotiate standard Lego curves.
> > As the leading truck has an axle each side of the cylinders, I'm finding it hard
> > to keep the cylinders fixed relative to the driving wheels without the cylinders
> > and/or rods fouling the wheels of the pilot truck.
> > <snip>
> > So if anyone's got any tips or experience in this, I'd love to hear it.
>
> Hello Sebastian,
>

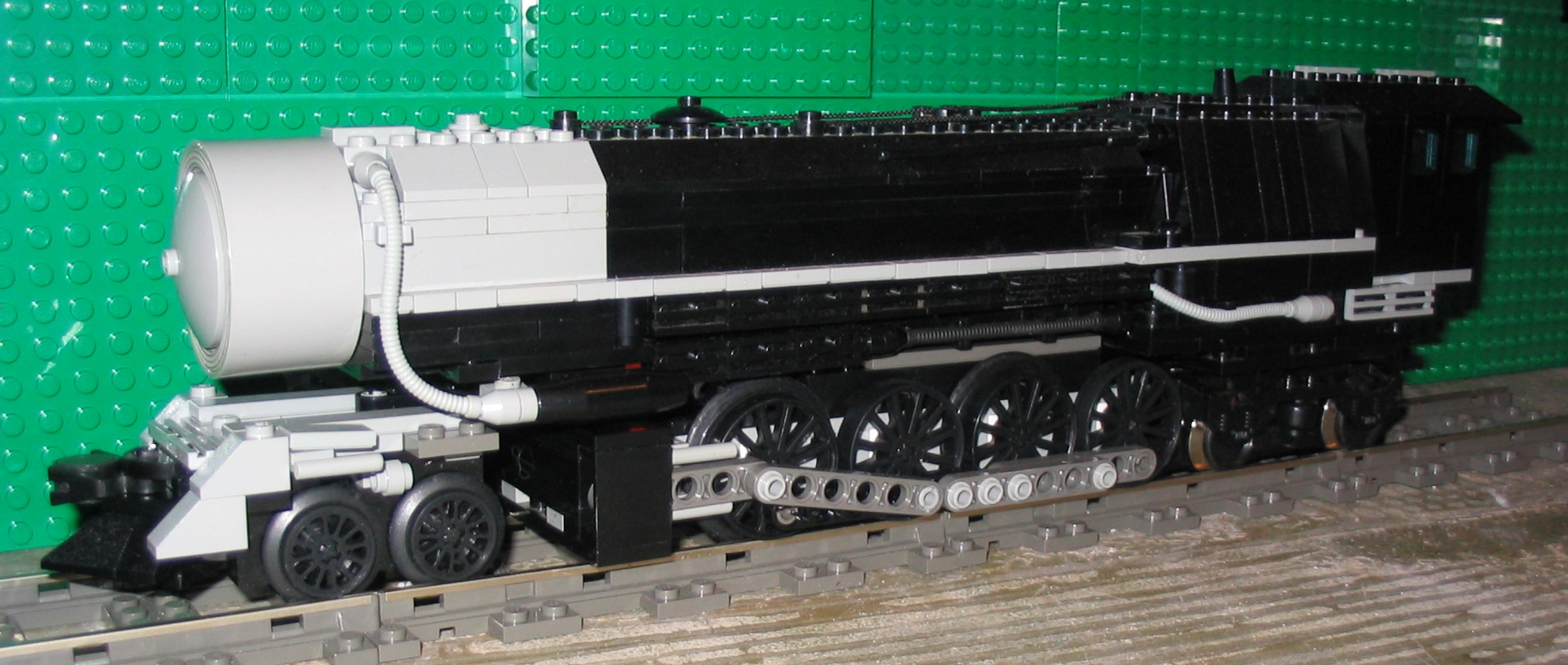

> The best I've manage to work out on this is with my 4-8-4 Northern engine as
> shown at:
>
> <http://www.bigbenbricks.com/gallery/484sps700_b.jpg>
>
> In this case, I put the leading wheels forward of the steam cylinders. The
> cylinders stay attached to the same bogie/truck that drive wheels are attached
> to. Not entirely prototypical, but it performs well when running on all sorts of
> track configurations.
>
> Hope this helps. If you figure out something else, please do share.
>
> Cheers,
>
> Ben Fleskes
> Big Ben Bricks LLC
That's quite neat - it hadn't occurred to me to shorten the front truck like
that to make room behind. But then I was trying to fit a motor in the front
when I did mine.
Jason R
|
|
