In lugnet.technic, Philippe Hurbain writes:
> ...and then they were five...
>
> The 1x7 liftarm is a bit short and the motor bumps against the flexible axle.
> So I used a 1x9 (7+2) to be low enough, and I could remove Micromotor bottom.
> I used a 1x2 liftarm with plate only for aestetical reasons...
>
> Photos:

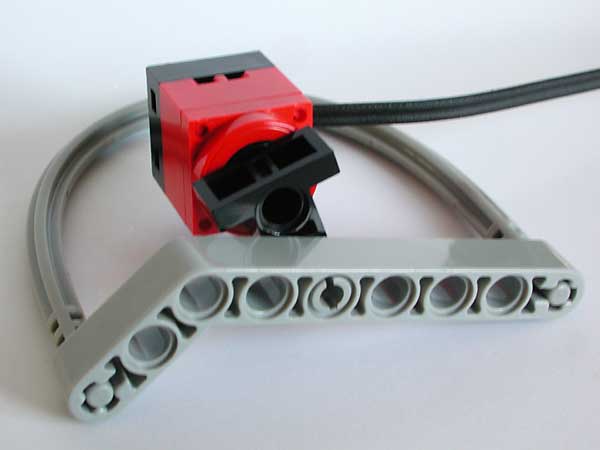

> http://www.philohome.com/misc/monopod5a.jpg

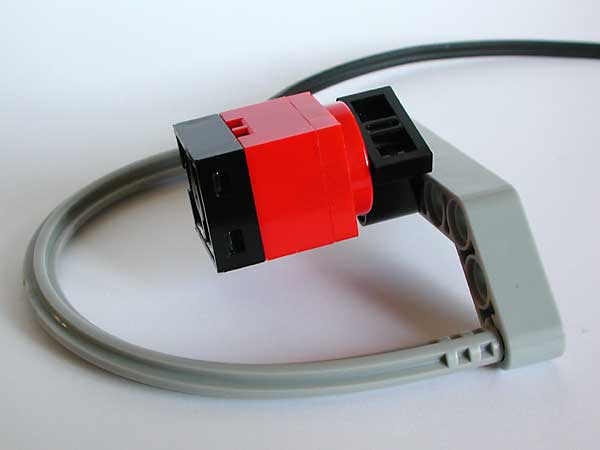

> http://www.philohome.com/misc/monopod5b.jpg

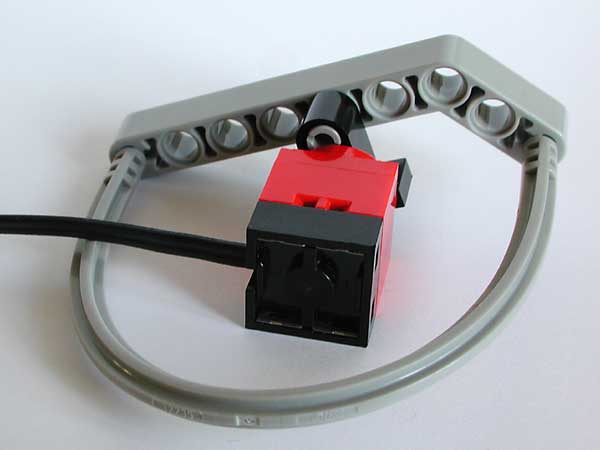

> http://www.philohome.com/misc/monopod5c.jpg
> Small QuickTime movie:
> http://www.philohome.com/misc/monopod5b.mov (200KB)
>
> I guess it will be hard to get a lower part count ;o)
>
> Philo
> www.philohome.com
>
> > Cool! I figured that the stiffness of the wire would help. I guess I'll call
> > it Shorty ,as it's only a little over an inch tall :). Now I've just got to
> > get that micro motor ordered so I can try it out myself. I'm wondering if
> > you could try out a slightly different design for me. It wouldn't use the
> > block under the motor (because as you said, the wire helps more than it
> > does) and it would use a 1x7 bent liftarm connected to a 16 long flexible
> > axle or flex hose of similar length. You could try it without a brick under
> > the motor or with a 2x2 plate there. If you could let me know how it works
> > out, I'd appreciate it.
> >
> > Thanks,
> >
> > jrl
I was just thinking about the design and that I would really like to have it
lift its foot off the ground, and I think I have something. I think that a
1x7 liftarm with an 18 long flex tube would be a touch smaller and allow the
foot to clear the ground. The diameter of the flex tube is slightly smaller
than the flexible axle and I don't think the motor would bump it. Please let
me know if it works, and I don't mean to bother you.
Thanks,
jrl
|
|
