Subject:
Re: 100% LEGO Technic Clock with Electric Drive
Newsgroups:
lugnet.technic
Date:
Tue, 21 Nov 2006 03:50:48 GMT
Viewed:
5616 times

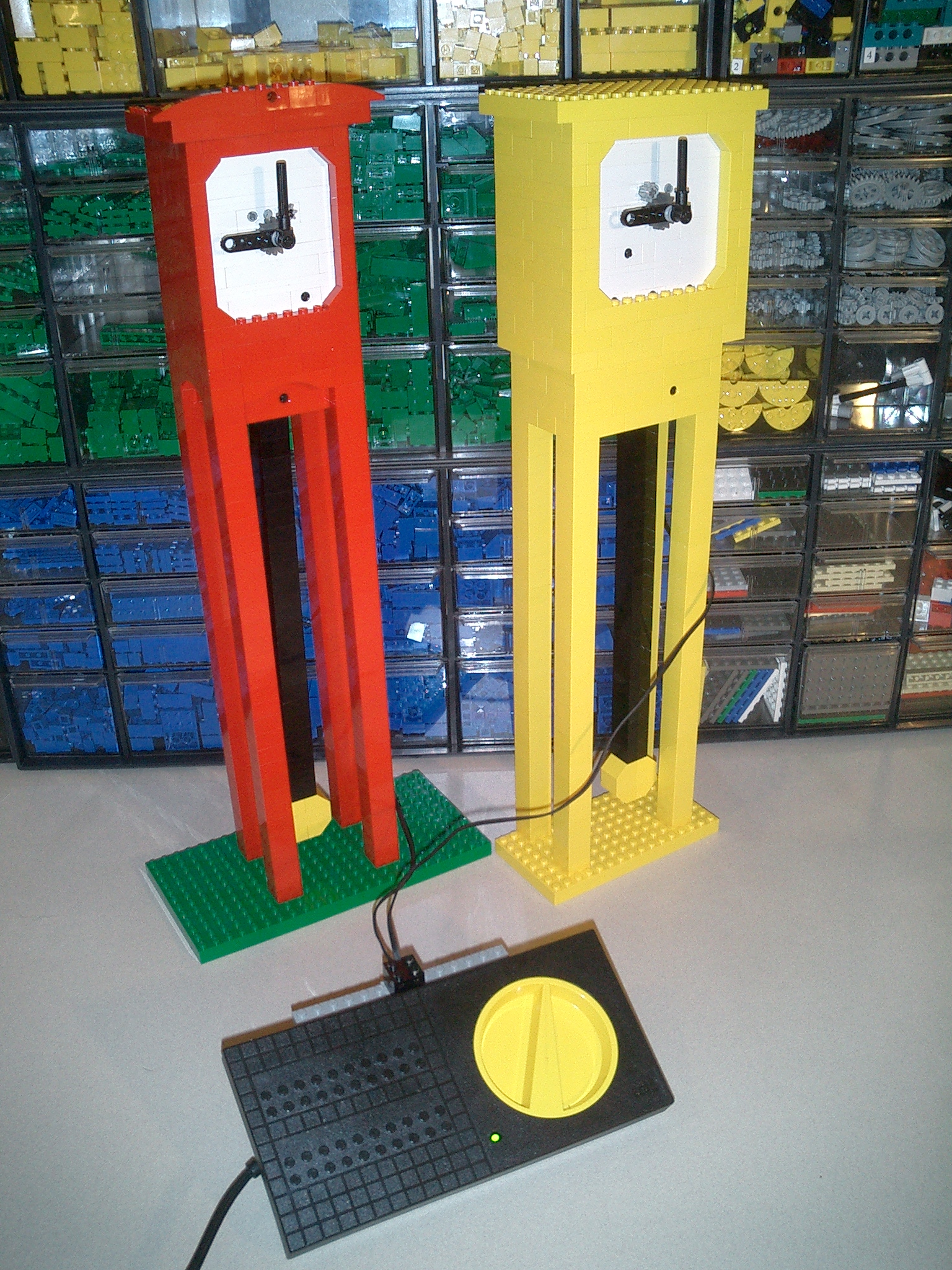

Not content with a clock mechanism that was 12 studs wide, I completely redesigned the reduction geartrain yesterday, resulting in a mechanism that is only 8 studs wide. There is much less friction in this new design than in the previous one, so it runs much more easily and at lower voltage levels. I haven’t tuned this one at all, so it is running a bit fast at the moment.



Now if I can just get that ticking sound out of my head...

In lugnet.announce.moc, Chris Phillips wrote:
   I’ve spent the past few days refining the design of my Technic clock. I’ve managed to convert it to electric drive (using a 9V micro motor) which enabled me to get rid of the 2-lb. weight and string. This made it possible to further reduce the size of the timekeeping mechanism while greatly improving its reliability. The result is a fully functional electric clock made from 100% unmodified LEGO parts.



The clock stands about 17 inches tall, and can be powered from a train regulator or a battery box. Without the dangling weight, this MOC can easily stand on the mantlepiece without fear that it will take a sudden plunge to the floor.

I’m still tweaking the timing, but it is already able to keep time within a few minutes per hour, and has run for several hours at a stretch with no human intervention. As an added bonus, the clock time can be set (even while the clock is running) simply by turning the hands to the desired time.

Must sleep now...



Message is in Reply To:
  100% LEGO Technic Clock with Electric Drive

I've spent the past few days refining the design of my (URL) Technic clock>. I've managed to convert it to electric drive (using a 9V micro motor) which enabled me to get rid of the 2-lb. weight and string. This made it possible to further reduce (...) (18 years ago, 19-Nov-06, to lugnet.announce.moc, lugnet.technic, FTX) !!
