In lugnet.cad, Niels Karsdorp writes:
> In lugnet.cad, Tony Hafner writes:
> > Here's something I'm working on, the first part in which I'm using the
> > chord.dat primitive that I posted here the other day.

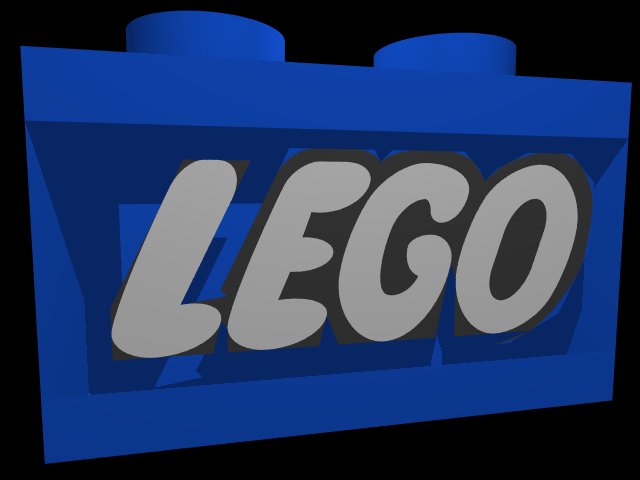

> > http://www.hafhead.com/lego/cad/images/renders/3004logo.jpg
> > It's obviously not done yet, but I'm getting there.
>
> Wow, looks great!
>
> If you're done, you could create the 2x2 version as well, uses
> the same logo. I have recently uploaded the 2x2 version based on
> the old 1x2 version.
>
> Is it possible to make a six stud wide version?
> That would look great on the storage box I'm workin on.
I'm not done yet and probably won't be until January some time, because
family obligations override parts authoring. But the logo is going to be a
subpart so that it will be easy to include on any part.
I plan on doing one version with just white text and a black outline and
another version with another level of outline then a red box with black
border around the whole thing. I'll put the black/white version on a 1x2
and 2x2, and the other one on a 2x4 brick, (1x2 tile?), Duplo 2x2, and Primo
1x1.
The bounding box for the one without the red box is 100x40 ldu, and it lies
flat (in the xz plane). It's scaled down by .4 and rotated into the xy axis
to fit onto a 1x2. If you want it 6 studs wide, just scale it by 1.2. Send
me mail if you want it in its current state.
> Keep up this good work!
Thanks!
--
Tony Hafner
www.hafhead.com
|
|
